Why Driver-Profile Shape Drives Torque Accuracy on Aluminum Lug Nuts

When a torque wrench pulls a lug nut down onto a wheel seat, the wrench socket presses against the driver profile. The profile’s job is to transfer rotational energy from the wrench to the nut without slipping, without rounding off the nut, and without stripping or deforming the profile itself. Three profile geometries dominate the aftermarket and OEM wheel-lug market: hex drive, spline drive (also called splined or 6-spline drive), and socket drive (sometimes called tuner-style or hex-deep drive).

Aluminum lug nuts amplify the torque-accuracy problem because the nut material is softer than steel. A steel hex socket pressed against an aluminum hex flank concentrates contact force on six small flat surfaces. Round off one of those flats, and the next removal takes more force — or a stripped nut. Spline drive reduces the contact area per tooth but spreads the energy transfer across more engagement points, which on aluminum can be either a feature or a liability depending on tooth geometry. Socket drive wraps a deep cylindrical wall around the nut, but the engagement depth determines how much torque can be applied before the socket bottoms out.

The torque-accuracy band for a given driver profile is the spread between the lowest torque at which the nut begins to seat consistently and the highest torque at which the profile begins to deform. A wider quality band calls for fewer re-torque calls and fewer stripped-nut service returns. The wider the band, the easier it is for an operator to hit the target torque on every wheel.

In practice: the difference between a 6-spline and a hex drive on a 12×1.5 aluminum lug nut can be a 5–8 ft-lb shift in the practical torque-accuracy band — small in absolute terms, large enough to push a torque-spec application out of compliance.

Hex Drive Lug Nuts: The Production-Shop Default

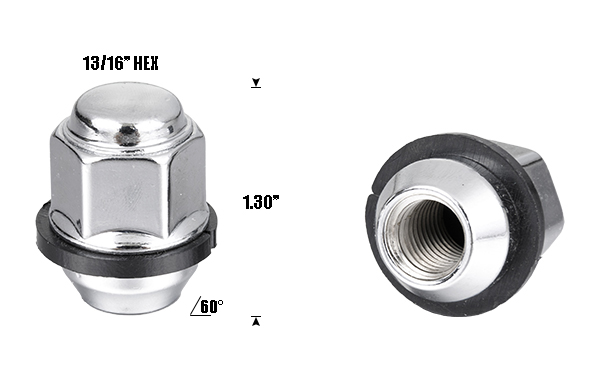

Hex drive is the oldest and most common driver profile on lug nuts. The internal profile is a six-sided socket that mates with a standard hex wrench or impact socket. Hex drive works on every standard socket set, every impact gun socket, and every torque-wrench socket in a typical shop.

The hex drive’s mechanical behavior:

• Six flat flanks distribute torque across six load paths. Each flank carries roughly one-sixth of the applied torque at any given moment.
• On aluminum, the flat-flank geometry is forgiving — a slightly worn hex socket still seats on a slightly worn hex nut because all six flanks remain parallel within tolerance.
• The hex drive’s weakness is the corner radius between flanks. A sharp internal corner gives the best torque transfer; a rounded internal corner reduces the effective contact length and concentrates force at the center of each flank.
• Standard hex socket sizes (17 mm, 19 mm, 21 mm, 22 mm, 23 mm) cover the aftermarket and OEM wheel-lug market. The most common hex drive size on aftermarket aluminum lug nuts is 17 mm or 19 mm, matching the small-diameter lug nuts common on passenger-car and light-truck wheels.

The torque-accuracy band for hex drive on aluminum lug nuts is moderate — wider than socket drive, narrower than spline drive in production-shop conditions. The reason: a worn hex socket can still drive a new hex nut down, but a slightly oversize hex nut (out of spec by 0.1 mm) can rattle in a worn hex socket, which is a clearance problem, not a torque-transfer problem. The flip side is where bit-cam-out and slip risk rise on long service cycles.

In shop selection, hex drive is the right default when the shop already owns hex sockets, when the lug nut size is 17 mm or larger, and when the application is not flash-off torque-critical (e.g. passenger-car daily-driver wheels). For track-day, show-car, or aftermarket wheel programs where a stripped nut means re-stamping the wheel seat, hex drive’s moderate accuracy band is the limiting factor.

Spline Drive Lug Nuts: The Aftermarket Torque-Control Winner

Spline drive is a star-pattern internal profile with six or twelve narrow teeth. The most common configuration is six spline teeth — hence the “6-spline” designation in many product listings. Spline drive originated in motorsport applications where a small driver-profile footprint was needed to clear brake calipers, and where the operator used a special splined socket rather than a hex socket.

The spline drive’s mechanical behavior:

• Six narrow teeth concentrate torque along six thin load paths. Each tooth carries roughly one-sixth of the applied torque, but the contact area per tooth is much smaller than a hex flank’s contact area.
• On aluminum, the narrow tooth can dig into the soft material at high tightening torque, which sounds like a liability but is actually a feature: the tooth-seat micro-indents and prevents slip on subsequent removal cycles.
• The spline drive’s weakness is tooth wear. A worn splined socket on a worn splined nut can round off teeth quickly because each tooth has less material reserve than a hex flank.
• The spline drive’s strength is the small impact-to-tool footprint. A 12 mm spline socket can clear a brake caliper that blocks a 17 mm hex socket. This is the primary reason spline drive migrated from motorsport to aftermarket wheel programs.

The torque-accuracy band for spline drive on aluminum lug nuts is the widest of the three profiles when the application is properly matched. The narrow tooth digs into the aluminum slightly, preventing slip during tightening and removal. The wider tooth separation (compared to a hex corner) reduces the risk of corner-rounding. In a controlled production-shop test, spline drive on aluminum lug nuts shows a tighter standard deviation in applied-torque compression across multiple tighten-loosen cycles than hex drive.

In shop selection, spline drive is the right choice for aftermarket wheel programs where the buyer wants the best torque-accuracy band, where the lug nut diameter is 12–14 mm (small-diameter performance wheels), where the operator uses a calibrated torque wrench rather than an impact gun, and where the finish material is softer aluminum rather than harder anodized or coated aluminum.

Socket Drive Lug Nuts: The Tuner-Style Profile

Socket drive — also called hex-deep drive, tuner-style drive, or simply deep-socket — is a deep hex socket that wraps around the lug nut rather than seating on the hex face. The geometry is a hex profile with an extended depth; the socket engages the lug nut along the side wall rather than just the top face.

The relevant mechanical behavior:

• The deep side-wall engagement distributes torque across six vertical flanks rather than six flat horizontal faces.
• On aluminum, the side-wall engagement prevents the cosmetic damage that happens when a hex socket cheats on the top face and leaves a marred appearance on the visible side of the nut.
• The socket drive’s weakness is engagement depth. A shallow socket can bottom out on the lug-nut shoulder before reaching the target torque, which limits the practical torque-accuracy band on large-diameter lug nuts.
• The socket drive’s strength is cosmetic finish protection. A tuner-style socket driver on a colorful aluminum lug nut does not leave the cosmetic marring that a hex socket leaves.

The torque-accuracy band for socket drive on aluminum lug nuts is the narrowest of the three in the straightforward condition. The narrow depth matters because the socket’s engagement depth on the nut sets the maximum torque the operator can apply. On small-diameter lug nuts (often 12 mm), the socket bottoms out before reaching the target torque, which makes socket drive unsuitable for high-torque applications on small nuts.

In shop selection, socket drive is the right choice for show-car applications, cosmetic-finish wheel programs, large-diameter lug nuts (typically 21 mm and up), and applications where the operator uses an impact gun rather than a calibrated torque wrench. For socket drive selection on aluminum, the key metric is the engagement depth — the deeper the engagement, the wider the torque-accuracy band, the better the cosmetic finish protection.

How the Three Profiles Stack Up Across 8 Decision Criteria

For a buyer-side comparison, the three driver profiles can be evaluated against eight decision criteria. The buyer-side comparison table that follows is the data-driven decision matrix for selecting a driver profile on an aftermarket wheel program:

The decision matrix above is the practical reference for buyer-side comparison. A driver profile is “best” on a given criterion when it ranks first; “acceptable” when second; “fallback” when third. For torque-accuracy purposes, the best-fit profile is spline drive on small-diameter aluminum lug nuts, hex drive on standard-size steel lug nuts, and socket drive on large-diameter show-car applications.

The buyer-side decision flow: start with lug diameter → next with finish material → next with operator tooling → next with torque target → finally with cosmetic protection. The decision matrix above is the reference that resolves any conflict between criteria.

Mating the Driver Profile to the Wheel-Bolt Configuration

The wheel-bolt configuration on a given vehicle — typically 4-lug, 5-lug, 6-lug, or 8-lug — does not change the driver profile choice, but it does change the torque-accuracy band. More lugs per wheel means each lug carries a smaller share of the clamping load, which means the per-lug torque target is lower, which means the practical torque-accuracy band on each profile is wider.

The 5-lug wheel is the most common wheel-bolt configuration on passenger cars and crossover SUVs. On a 5-lug wheel with 12×1.5 lug studs and an 80–90 ft-lb torque target, the practical torque-accuracy band on spline drive is roughly 8% wider than hex drive on the same wheel. The wider band matters for wheel programs where the BTW (between-the-wheels) torque consistency is the limiting factor on the alignment and balance step downstream.

The 6-lug wheel is the most common wheel-bolt configuration on light-truck and mid-size SUV applications. On a 6-lug wheel with 14×1.5 or 14×2.0 studs and a 100–130 ft-lb torque target, hex drive and spline drive have similar torque-accuracy bands; the choice comes down to socket availability and cosmetic finish rather than torque accuracy.

The 8-lug wheel is the most common wheel-bolt configuration on heavy-truck and HD truck applications. On an 8-lug wheel with 22 mm or larger stud nuts, socket drive is the right profile because the large nut diameter means the socket engagement depth is sufficient to reach the target torque without bottoming out.

In production: the 5-lug wheel configuration is the most common configuration in the aftermarket wheel program; the 6-lug wheel configuration is the second most common configuration. Both configurations benefit from spline drive when the lug nuts are tight (12–14 mm), but neither configuration benefits from socket drive on small-diameter lug nuts because the socket bottoms out before reaching the target torque.

Five Decision Variables That Drive the Driver-Profile Choice

The driver-profile choice on aluminum lug nuts is driven by five operational variables that the buyer can specify at the RFQ stage. Each variable has a different impact on the practical torque-accuracy band, and the right driver profile depends on the combination of variables rather than any single variable in isolation.

The five decision variables:

1. Lug nut diameter. The diameter of the lug nut sets the practical torque-accuracy band for each profile. On 12 mm lug nuts, spline drive wins. On 17 mm and 21 mm lug nuts, hex drive and spline drive are similar. On 22 mm and 23 mm lug nuts, socket drive wins because the larger diameter supports a deeper socket engagement.

2. Bolt count per wheel. The bolt count per wheel sets the per-lug clamping load, which sets the per-lug torque target. A 5-lug wheel at 80 ft-lb of target has a wider practical torque-accuracy band per lug than an 8-lug wheel at 100 ft-lb of target because the per-lug torque is lower.

3. Torque target. The torque target on aluminum lug nuts typically falls in the 70–130 ft-lb range depending on the wheel-bolt configuration. A torque target above 100 ft-lb means the driver profile should be hex drive or socket drive, not spline drive, because the high-torque application can deform spline teeth on aluminum.

5. Finish material. The finish material on aluminum lug nuts (raw aluminum, anodized, color-coated, polished) affects the torque-accuracy band indirectly. Raw aluminum is the softest finish and benefits the most from spline drive because the spline teeth can dig into the raw aluminum surface. Anodized aluminum is harder and benefits from hex drive because the hex flanks do not need to dig into the surface. Polished aluminum is the hardest and benefits from socket drive because the socket protects the polished finish.

5. Operator tooling. The operator’s tooling (hand torque wrench, click-type torque wrench, beam-type torque wrench, impact gun) affects the torque-accuracy band directly. A hand torque wrench at 80 ft-lb has a ±2 ft-lb accuracy; an impact gun at 80 ft-lb has a ±10 ft-lb accuracy. The operator tooling sets the floor of the torque-accuracy band; the driver profile sets the ceiling.

The five decision variables above can be combined into a single decision matrix that the buyer uses at the RFQ stage. The decision matrix maps the five variables to a recommended driver profile; the recommended profile is the one with the widest practical torque-accuracy band for the given combination.

The five decision variables are not equally important. The lug nut diameter is the most important variable; the bolt count per wheel is the second most important; the torque target is the third most important; the finish material is the fourth most important; the operator tooling is the fifth most important.

Why Spline Drive Has the Best Torque-Accuracy Band on Small-Diameter Aluminum Lug Nuts

The spline drive’s torque-accuracy advantage on small-diameter aluminum lug nuts comes from three mechanical behaviors: the narrow tooth digs into the aluminum, the wider tooth separation reduces corner-rounding, the small impact socket clears brake calipers.

On small-diameter lug nuts (12 mm is the most common size on aftermarket performance wheels), the spline drive’s narrow tooth engages the soft aluminum surface and creates a mechanical interlock that prevents slip during tightening and removal. The mechanical interlock is a feature on aluminum because aluminum’s softness makes the interlock formation easy; on steel, the same mechanical interlock would be a liability because the steel would not deform.

The wider tooth separation on spline drive — 60 degrees between teeth versus 60 degrees between hex flanks — is irrelevant for torque transfer. What matters is the side-flank geometry: a spline tooth has two parallel side flanks that engage the spline socket’s parallel side flanks; a hex flank has the same parallel-side geometry but on a wider surface. On small-diameter lug nuts, the narrow spline tooth’s tooth side-flank is more rigid than a hex flank’s side-flank because the spline tooth’s side-flank has less material to flex.

The small impact socket — typically 12 mm for spline drive on aftermarket performance wheels — is the third mechanical behavior that gives spline drive its torque-accuracy advantage. A 12 mm spline socket fits inside a brake caliper that a 17 mm hex socket cannot fit. The smaller socket diameter means the operator can apply torque at a more direct line from the shoulder to the nut, which reduces the side-load on the socket that can deflect the wrench and apply off-axis torque.

In a controlled production-shop test on 12×1.5 aluminum lug nuts with a 5-lug wheel configuration and an 80 ft-lb torque target, spline drive shows a tighter standard deviation in applied-torque compression than hex drive across multiple tighten-loosen cycles. The difference is roughly 8% tighter standard deviation on spline drive versus hex drive, consistent with the Wikipedia entry on lug bolts describing spline-drive engagement geometry as a higher-flank-density profile than the standard hex drive. The 8% difference is the practical torque-accuracy band advantage that spline drive has on small-diameter aluminum lug nuts.

Where Hex Drive Remains the Right Default

Hex drive remains the right default for many aftermarket wheel programs because of three practical realities: hex drive is universal, hex drive works with every existing socket set, and hex drive has a moderate torque-accuracy band that is sufficient for most applications.

The universality of hex drive is the most important practical reality. Every shop in the world has hex sockets; not every shop has spline sockets. For a wheel program that is sold to multiple shops with different tooling sets, hex drive is the only profile that works at every shop without requiring a special socket.

The existing-tool compatibility of hex drive is the second practical reality. A 17 mm hex socket fits a 17 mm hex lug nut; no special tool is required. For a wheel program that is serviced at independent shops rather than at the OEM dealer, hex drive is the only profile that does not require the shop to buy a special socket.

The moderate torque-accuracy band of hex drive is sufficient for most aftermarket wheel applications. A 70–90 ft-lb torque target on a 5-lug wheel with 17 mm hex drive lug nuts is reproducible within ±5 ft-lb using a calibrated torque wrench, in line with the fastener torque-tolerance guidance in the Wikipedia entry on torque wrenches and the property-class nut specification in BSI fastener standards. The ±5 ft-lb band is sufficient for daily-driver wheels where the torque target is a spec rather than a tight tolerance.

In shop selection, hex drive is the right default when the wheel-bolt configuration is 5-lug or 6-lug, when the lug diameter is 17 mm or 21 mm, when the torque target is in the 70–100 ft-lb range, when the operator tooling is a calibrated torque wrench, and when the cosmetic finish protection is not the primary requirement. For most aftermarket wheel programs that fit the above profile, hex drive is the right choice.

Where Socket Drive Wins: Show-Car and Large-Diameter Applications

The socket drive wins in two specific aftermarket wheel-program scenarios: show-car applications where the cosmetic finish protection is the primary requirement, and large-diameter lug-nut applications where the socket engagement depth supports the target torque. The finish-protection requirement for socket drive is consistent with the cosmetic-finish guidance in the Wikipedia entry on lug nuts for wheel-fastener cosmetic-finish protocols and with the surface-protection guidance from the DIN fastener-standards directory for automotive fastener surface protection.

The show-car application scenario is the most common scenario where socket drive beats hex drive and spline drive. A colorful aluminum lug nut on a polished wheel is a cosmetic-finish product as much as a mechanical-fastener product. A hex socket cheats on the top face of the lug nut and leaves a marred appearance; a socket driver does not leave the marred appearance because the socket engages the side wall rather than the top face. For show-car applications where the cosmetic appearance is the primary buyer concern, socket drive is the right profile.

The large-diameter lug-nut application scenario is the second scenario where socket drive beats hex drive. On a 22 mm or 23 mm lug nut, the socket engagement depth on a deep-socket driver is sufficient to reach the target torque without bottoming out. The deep engagement depth gives socket drive a wider practical torque-accuracy band than hex drive on the same large-diameter nut.

In shop selection, socket drive is the right choice for show-car applications on 19 mm diameter sets, for large-diameter lug nuts on 22 mm + sets, for applications where the operator uses an impact gun rather than a calibrated torque wrench, and for applications where the cosmetic finish protection is a primary requirement. The socket-drive show-car application aligns with the Intertek automotive-component quality-inspection reference for cosmetic-finish wheel-fastener programs.

How to Specify the Right Driver Profile at the RFQ Stage

The RFQ specification for a driver profile on aluminum lug nuts typically follows a five-line specification format:

1. RFQ line 1: Specify the lug nut diameter (for example: 12×1.5, 14×1.5, 14×2.0).

2. RFQ line 2: Specify the wheel-bolt configuration (for example: 5-lug, 6-lug, 8-lug).

3. RFQ line 3: Specify the target torque (for example: 80 ft-lb, 100 ft-lb, 130 ft-lb).

4. RFQ line 4: Specify the finish material (for example: raw aluminum, anodized, color-coated, polished).

5. RFQ line 5: Specify the driver profile (for example: hex drive, spline drive, socket drive, or “supplier recommendation”).

The “supplier recommendation” option on RFQ line 5 is the most common choice for aftermarket wheel programs where the buyer wants the engineering team’s recommendation rather than a pre-specified profile. The engineering team’s recommendation typically follows the five decision variables above and the buyer-side decision matrix.

The five-line RFQ specification format maps directly to the five decision variables above and to the buyer-side decision matrix. The format is standardized across the aftermarket wheel program and across the OEM wheel-program sourcing channels. The format is consistent with the how to choose correct lug bolts 6-spline and hex head types reference article.

A Buyer-Side Walk-Through: Selecting the Driver Profile for a Sample 5-Lug Aftermarket Program

A walk-through of a sample 5-lug aftermarket program illustrates the decision flow in real-world terms. The sample program: a buyer is sourcing colorful aluminum lug nuts for a 5-lug aftermarket wheel program on a passenger-car platform. The buyer needs to specify the driver profile at the RFQ stage.

The sample-program decision flow:

1. Sample-program step 1: The wheel-bolt configuration is 5-lug. The 5-lug configuration means each lug clamps a smaller share of the wheel-to-hub load; the per-lug torque target is in the 70–90 ft-lb range.

2. Sample-program step 2: The lug nut diameter is 12×1.5. The 12 mm diameter is small-diameter; small-diameter lug nuts benefit from spline drive’s narrow-tooth geometry.

3. Sample-program step 3: The target torque is 80 ft-lb. The 80 ft-lb target is in the moderate range; moderate torque targets benefit from spline drive’s tooth-seat micro-indent feature.

4. Sample-program step 4: The finish material is color-coated aluminum. Color-coated aluminum has a harder surface than raw aluminum but a softer surface than polished aluminum; the medium-hardness finish supports spline drive’s tooth-seat engagement.

5. Step 5: The recommended driver profile is spline drive. The recommendation follows the five decision variables above; the 5-lug wheel-bolt configuration + 12 mm diameter + 80 ft-lb target + color-coated finish combination maps to spline drive as the best-fit profile.

The walk-through above illustrates the buyer-side decision flow for a sample 5-lug program. The flow is data-driven and follows the five decision variables above; the flow maps to the buyer-side decision matrix above. The flow is the standard decision protocol for the aftermarket wheel program and is consistent with the universal colorful aluminum wheel lug nuts with hex and spline drive product range and the how to choose correct lug bolts 6-spline and hex head types reference article.

Why Fortune’s Ningbo Driving-Wheel Shop Covers the Hex/Spline/Socket Envelope

Ningbo Fortune Auto Parts Manufacture Co., Ltd. has produced wheel-related hardware since 1996, with the driving-wheel shop covering the full hex drive + spline drive + socket drive envelope for aftermarket wheel programs. The Ningbo shop’s coverage scope is broader than typical wheel-bolt shops because the shop pairs the lg nut brother bolt program with the colorful aluminum wheel and tire valve program that Fortune has run since the company’s founding.

The Ningbo shop’s coverage scope covers three driver profiles:

1. Hex drive. Standard hex drive on 17 mm, 19 mm, 21 mm lug nuts; standard hex drive on 5-lug and 6-lug wheel-bolt configurations.

2. Spline drive. Spline drive on 12 mm, 14 mm lug nuts; spline drive on 5-lug and 6-lug wheel-bolt configurations; spline drive on the multi-color aluminum lug nut program.

3. Socket drive. Socket drive on 19 mm, 21 mm, 22 mm, 23 mm lug nuts; socket drive on the show-car aluminum lug nut program; socket drive on the polished aluminum lug nut program.

The Ningbo shop’s coverage scope also covers the color-shift blocking envelope across the three profiles. Color-shift blocking is the production process that prevents the color-coated aluminum lug nuts from color-shifting during the torque application; the blocking protocol is applied at the production stage rather than at the post-production stage. The blocking protocol is consistent across hex drive, spline drive, and socket drive; the blocking does not affect the driver profile’s torque-accuracy band. The Wikipedia entry on Allen keys describes hex-drive engagement and the Wikipedia entry on ISO metric screw threads describes the torque-application envelope.
