Tire Valves: Types, Materials & Quality Inspection Standards

Although a tire valve is one of the smallest components on a wheel, it plays a vital role in maintaining proper tire pressure, preventing air leakage, and ensuring driving safety. Different vehicles, tire structures, and applications require different types of tire valves.

For tire repair shops, automotive distributors, wholesalers, and OEM manufacturers, understanding valve types, material differences, and quality inspection standards is essential when selecting reliable products.

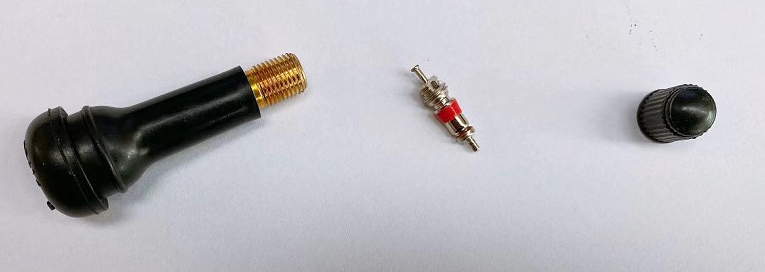

1. Snap-In Tubeless Rubber Valves

微信图片_20260703104829_508_23

Common Models: TR413, TR414

These are the most widely used tire valves for passenger cars and are also suitable for some motorcycles.

Materials

Snap-in rubber valves are typically manufactured using one of the following rubber compounds:

Natural Rubber

  • · Approximately 50% natural rubber content
  • · Cost-effective for standard applications
  • · Contains approximately 20–30% EPDM
  • · Better resistance to heat, ozone, UV exposure, and weathering
  • · Lower rubber odor
  • · Longer service life

EPDM Rubber (Ethylene Propylene Diene Monomer)

  • · Contains approximately 20–30% EPDM
  • · Better resistance to heat, ozone, UV exposure, and weathering
  • · Lower rubber odor
  • · Longer service life

 Today, EPDM rubber has become the preferred material for premium markets in Europe and North America.

Common Quality Issues in Low-Cost Products

To reduce production costs, some manufacturers may compromise product quality by:

  • · Using thinner or shorter brass stems, reducing structural strength
  • · Replacing brass components with zinc alloy or aluminum
  • · Reducing rubber content, resulting in premature cracking and aging

These shortcuts significantly affect product durability and safety.

Quality Inspection Standards

Premium tire valves undergo comprehensive inspections before shipment.

Functional Testing

  • · Insertion force test
  • · Pull-out force test
  • · 100% air leakage test
  • · High and low temperature cycling test
  • · Ozone resistance test
  • · Rubber hardness test
  • · Brass stem dimensional tolerance
  • · Thread accuracy
  • · Rubber molding quality
  • · Valve core specification verification

Dimensional & Visual Inspection

  • · Brass stem dimensional tolerance
  • · Thread accuracy
  • · Rubber molding quality
  • · Valve core specification verification

2. Tube-Type Rubber Base Valves

Common Models: TR75A, TR78A

Designed for tube-type tires, these valves are commonly used on trucks, agricultural vehicles, and heavy-duty commercial vehicles.

Materials

The valve body is manufactured from brass and combined with either:

Natural Rubber

  • · Excellent elasticity
  • · Fast rebound performance
  • · Superior aging resistance
  • · Better air retention
  • · Excellent durability
  • · Slower rebound

Butyl Rubber

Brass quality also has a direct impact on product appearance.

  • · Higher lead content produces a dull, whitish surface.
  • · Higher copper purity creates a bright golden finish.

For export markets, especially Europe and North America, strict control of lead content is required to meet environmental and safety standards.

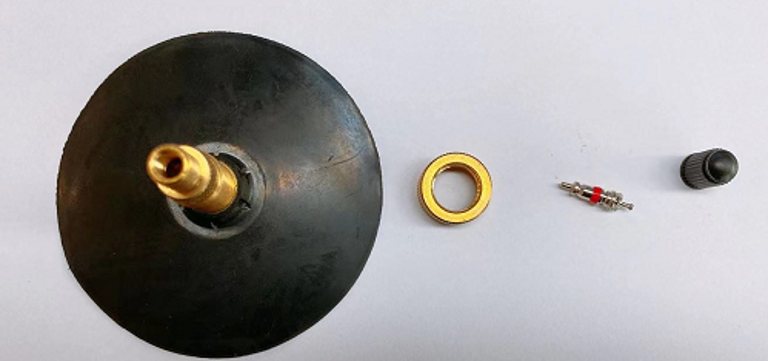

Components

  • · Rubber base
  • · Brass valve body
  • · Brass or steel retaining nut
  • · Valve core
  • · Valve cap
微信图片_20260703111106_509_23

3. Clamp-In Metal Tubeless Valves

Common Model: MS525

Clamp-in metal valves are commonly manufactured from brass, aluminum, or zinc alloy and are widely used on passenger vehicles equipped with alloy wheels.Some manufacturers reduce costs by using lightweight or non-standard components. Reliable suppliers should perform the following quality inspections.

Appearance Inspection

Every valve should be visually inspected for:

  • · Casting defects
  • · Plating imperfections
  • · Missing or incorrectly assembled parts
  • · Proper thread engagement
  • · Burrs or defects on rubber sealing washers

Material Verification

All components should be inspected according to engineering drawings to verify:

  • · Material specifications
  • · Rubber hardness
  • · Product dimensions
  • · Product weight
  • · Approved raw material suppliers

Precision Measurement

Critical dimensions should be checked using professional measuring equipment, including:

  • · Valve core chamber dimensions
  • · Thread tolerance

 Air Tightness Test

Every qualified manufacturer should be equipped with dedicated air leak testing equipment to ensure excellent sealing performance before shipment.

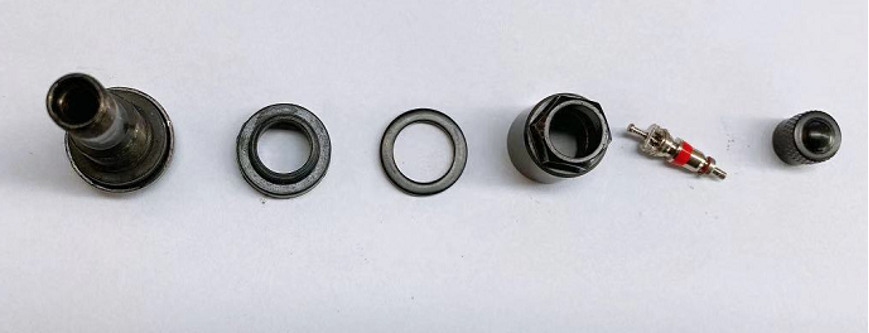

Components

  • · Brass or aluminum valve body
  • · EPDM rubber sealing washer
  • · Brass or aluminum flat washer
  • · Brass or aluminum lock nut
  • · Valve core
  • · Metal dust cap
微信图片_20260703112419_510_23

Why Quality Matters

Whether you're sourcing snap-in rubber valves for passenger cars, tube-type valves for commercial vehicles, or clamp-in metal valves for premium alloy wheels, choosing products made with high-quality materials and strict quality control standards is essential.

Reliable tire valves help reduce air leakage, minimize warranty claims, improve customer satisfaction, and ensure long-term driving safety.

At Fortune, every valve is manufactured under strict quality management procedures. We provide comprehensive material reports, third-party testing certificates, and OEM solutions tailored to the quality standards and regulatory requirements of North America, Europe, Southeast Asia, and other global markets.

If you're looking for a reliable tire valve manufacturer or OEM supplier, our team is ready to help you find the right solution for your market.
